Star Light Series LED Street Lantern

Features

Super High Performance Price Ratio
Higher efficacy LED by Lumileds chip
Famous driver brand SOSEN

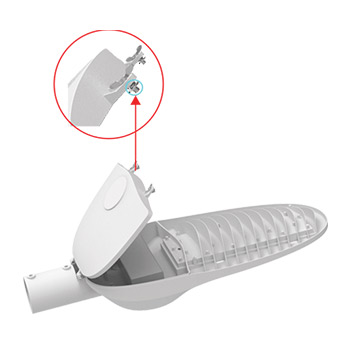

More convenient for installation and maintenance
50,000 Hours Life Span
New Era Modular Design offered Extensive application and Easy Maintenance
Wider Application
STAR LIGHT Series LED street light will provide the better lumen output, the better stability and very long lifetime.
Provide high uniformity and ensures no "DARK SPOTS" in the event of partial failure
Provide 5 years warranty for whole fixture
New Generation Dimmable Electronics Driver
25KA external Surge Protective Device (SPD) offered double layered of protection
Multiple Configuration Optional
Tempered Glass Cover is optional
Photocell, timer dimming, DALI, 0-10V dimming is optional
Intelligent control system with 7PIN NEMA interface is optional
It can be applied to streets, roads, highways, squares, parks and parking lots

Download Brochure 1

Installation Manuals Dimension Photometric Technical Data

Installation Manuals

Dimension

Photometric

Technical Data

Model	STAR LIGHT I	STAR LIGHT II	STAR LIGHT III	STAR LIGHT IV	STAR LIGHT V
Light Source	PHILIPS LUMILEDS	PHILIPS LUMILEDS	PHILIPS LUMILEDS	PHILIPS LUMILEDS	PHILIPS LUMILEDS
LED Series	3030	3030	3030	3030	3030
Working Humidity Range	10~90% RH	10~90% RH	10~90% RH	10~90% RH	10~90% RH
Glass Cover Material	Tempered Glass	Tempered Glass	Tempered Glass	Tempered Glass	Tempered Glass
Dimming Control Output	0-10V/PWM/DALI (Optional)
Power	90W	120W	150W	180W	200W
NEMA Socket	Support NEMA, ZigBee Smart Lighting System (Optional)
Luminous Flux (Absolute)	10,650Lm	14,100Lm	17,550Lm	21,000Lm	23,300Lm
Luminaire Efficacy	>100Lm/W	>100Lm/W	>100Lm/W	>100Lm/W	>100Lm/W
Colour Temperature (CCT)	3000K/ 4000k/ 5000K	3000K/ 4000k/ 5000K	3000K/ 4000k/ 5000K	3000K/ 4000k/ 5000K	3000K/ 4000k/ 5000K
Colour Rendering Index (CRI)	75±5	75±5	75±5	75±5	75±5
LED Life Span	50,000	50,000	50,000	50,000	50,000
Lumen Maintenance @ 50,000 Hours	70% Lumen Maintenance	70% Lumen Maintenance	70% Lumen Maintenance	70% Lumen Maintenance	70% Lumen Maintenance
Operating Temperature Range	-40°C ~ +50°C	-40°C ~ +50°C	-40°C ~ +50°C	-40°C ~ +50°C	-40°C ~ +50°C
Driver	External	External	External	External	External
Operating Voltage	220-240Vac	220-240Vac	220-240Vac	220-240Vac	220-240Vac
Classification	Class I	Class I	Class I	Class I	Class I
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
SPD (Surge Protective Device)	External 10kV, 20kA	External 10kV, 20kA	External 10kV, 20kA	External 10kV, 20kA	External 10kV, 20kA
Housing Materials	Die-Cast Aluminium Alloy	Die-Cast Aluminium Alloy	Die-Cast Aluminium Alloy	Die-Cast Aluminium Alloy	Die-Cast Aluminium Alloy
Ingress Protection For Luminaire	IP66	IP66	IP66	IP66	IP66
Installation Diameter (mm)	Horizontal Installation 57~63MM	Horizontal Installation 57~63MM	Horizontal Installation 57~63MM	Horizontal Installation 57~63MM	Horizontal Installation 57~63MM
Maintenance	Top Open Cover Access And Tool-Free Clip Lock At Gear Compartment
Fixture Dimension, N.W	567x233x87mm, 3.0Kg	673x295x101mm, 4.5Kg	673x295x101mm, 4.5Kg	742x237x114mm, 6.3Kg	742x237x114mm, 6.3Kg
Compliance LM80 (LED Chip)	YES	YES	YES	YES	YES
Compliance LM79 (Luminaire)	YES	YES	YES	YES	YES
Luminaire	IEC 62722-1, IE 62722-2-1, IEC 60598-1, IEC 60598-2-3, IEC 62471, IEC 62493, IEC 62031, IES LM79-08
LED Driver	EN 61347-1, EN 61347-2-13, EN 55015/GB 17743, EN 61000-3-2/GB 17625.1, EN 61000-3-3, EN 61000-4-2, -3, -4, -5, -6, -8, -11, EN 61547
