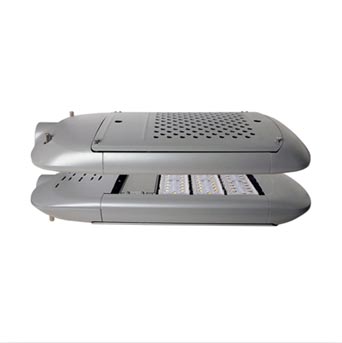

Sprinter Series LED Street Lantern

Features

Certified “Environmentally Friendly” products created with LED Technology
100% Mercury and Lead-Free increase the feasibility of use of LED
50,000-Hour Life Span
Next Generation Modular Design offers extensive application and easy maintenance
Compatible with all SPRINTERS Series Products

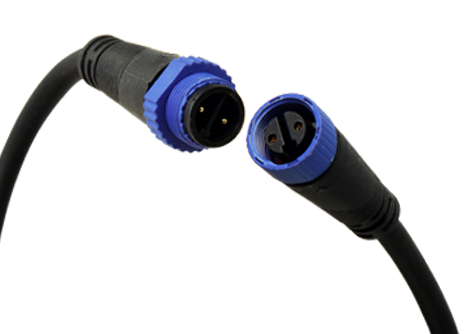

The "Plug & Go" weather-proof connector provides high mobility and tool-free maintenance
With IP68 on the modular, LED Street Lantern is weather-proof and can be fully submersed under water

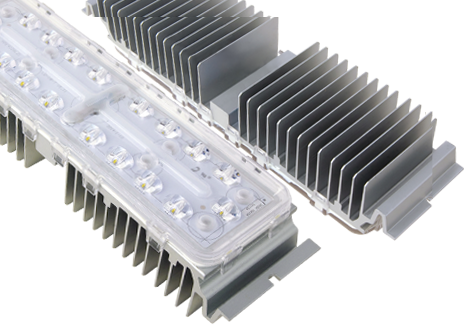

Scalable LED Modulars to fulfil various requirements

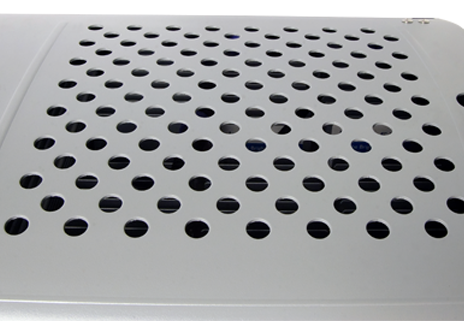

Open Air Type Die-Cast Aluminium with epoxy powder coated housing allows 100% natural air cooling, enhancing heat dissipation of LED modules
Independent Modular design does not affect other modulars when it is damaged
Modular designed for effortless upgrades to future LED generations
Constant power driver
Pre-Set Timer Dimming System

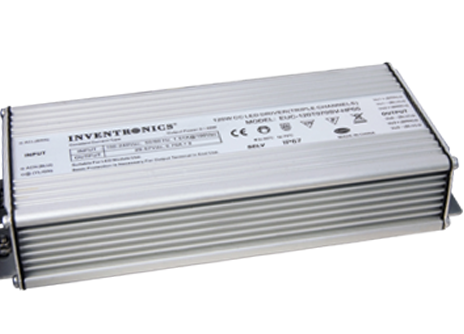

New Generation Dimmable Electronics Driver

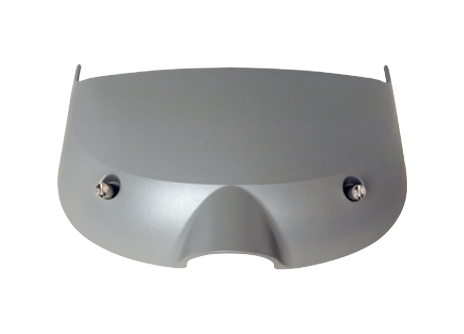

Customised front cover design provides high uniformity and ensures no "Dark Spots"in the event of partial failure

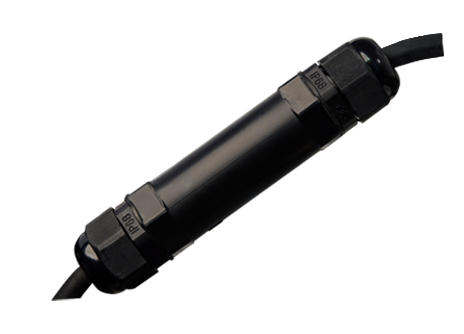

Minimum 20kA external SPD (Surge Protective Device) offers double-layered protection

Download Brochure 1

Download Brochure 2

Installation Manuals Dimension Photometric Technical Data

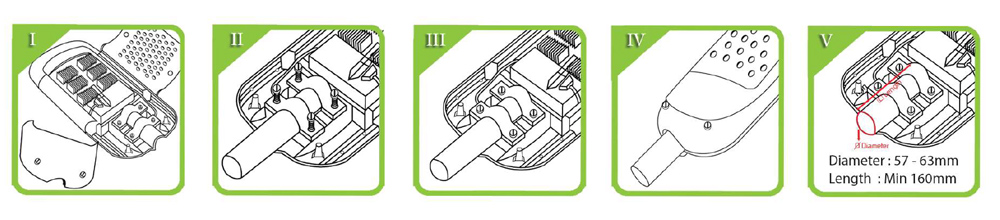

Installation Manuals

Dimension

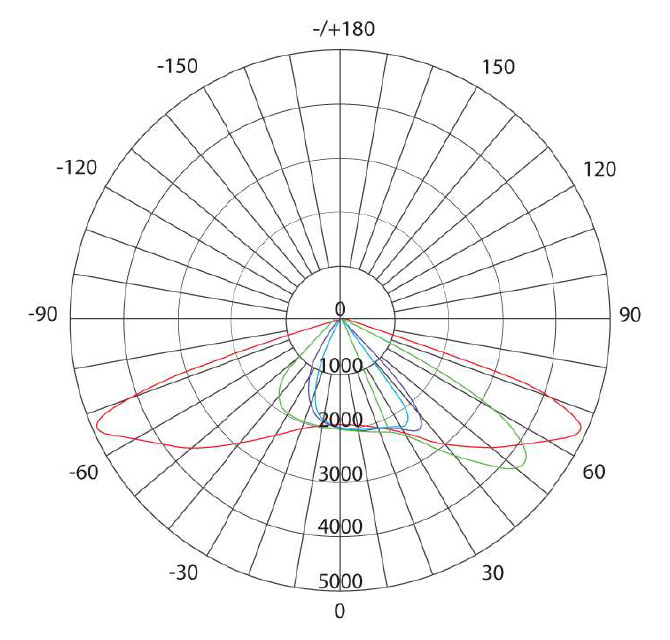

Photometric

Technical Data

Model	SPRINSTERS I	SPRINSTERS II	SPRINSTERS III	SPRINSTERS IV	SPRINSTERS V
Light Source	Philips Lumileds LED	Philips Lumileds LED	Philips Lumileds LED	Philips Lumileds LED	Philips Lumileds LED
LED Series	LUXEON T	LUXEON T	LUXEON T	LUXEON T	LUXEON T
LED Modular Connection	2 Modulars X 18 LUXEON T LED	3 Modulars X 18 LUXEON T LED	3 Modulars X 18 LUXEON T LED	4 Modulars X 18 LUXEON T LED	5 Modulars X 18 LUXEON T LED
Drive Current	700mA	700mA	700mA	700mA	700mA
Power	80W	100W	120W	160W	200W
MAX System Power	82W	102W	122W	162W	202W
Luminous Flux (Absolute)	8,000Lm	10,000Lm	12,200Lm	16,500Lm	19,200Lm
Luminaire Efficacy	>90Lm/W	>90Lm/W	>90Lm/W	>90Lm/W	>90Lm/W
Colour Temperature (CCT)	3000K/ 5000K	3000K/ 5000K	3000K/ 5000K	3000K/ 5000K	3000K/ 5000K
Colour Rendering Index (CRI)	75±5	75±5	75±5	75±5	75±5
LED Life Span	50,000	50,000	50,000	50,000	50,000
Lumen Maintenance @ 50,000 Hours	70% Lumen Maintenance	70% Lumen Maintenance	70% Lumen Maintenance	70% Lumen Maintenance	70% Lumen Maintenance
Operating Temperature Range	-40°C ~ +50°C	-40°C ~ +50°C	-40°C ~ +50°C	-40°C ~ +50°C	-40°C ~ +50°C
Driver	External	External	External	External	External
Operating Voltage	220-240Vac	220-240Vac	220-240Vac	220-240Vac	220-240Vac
Classification	Class I	Class I	Class I	Class I	Class I
Power Factor	>0.90	>0.90	>0.90	>0.90	>0.90
SPD (Surge Protective Device)	External 10kV, 20kA	External 10kV, 20kA	External 10kV, 20kA	External 10kV, 20kA	External 10kV, 20kA
Housing Materials	Die-Cast Aluminium Alloy	Die-Cast Aluminium Alloy	Die-Cast Aluminium Alloy	Die-Cast Aluminium Alloy	Die-Cast Aluminium Alloy
Ingress Protection (IP) for LED Module	IP68	IP68	IP68	IP68	IP68
Ingress Protection (IP) for LED Driver	IP67	IP67	IP67	IP67	IP67
Ingress Protection For Luminaire	IP66	IP66	IP66	IP66	IP66
Installation Diameter (mm)	Side Entry 57 ~ 63mm	Side Entry 57 ~ 63mm	Side Entry 57 ~ 63mm	Side Entry 57 ~ 63mm	Side Entry 57 ~ 63mm

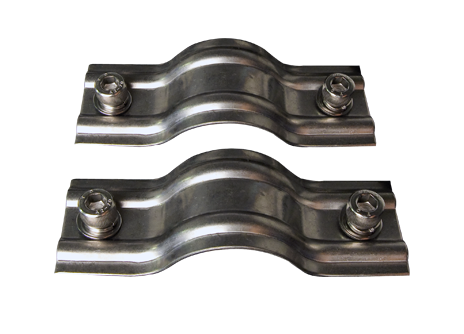

Maintenance	Top Open Cover Access, "Plug & Go" weather-proof connector and tool-free screw lock at LED modular ends (Maintenance Activity can be completed by bare hands practically)
Weight (KG) Nett Weight	8.9KG	8.9KG	9.5KG	10.7KG	11.9KG
Compliance LM80 (LED Chip)	YES	YES	YES	YES	YES
Compliance LM79 (Luminaire)	YES	NO	YES	YES	NO
Luminaire	IEC 62722-1, IE 62722-2-1, CISPR15, IEC 60598-1, IEC 60598-2-3, IEC 62471, EN 62493, EN 61000-3, EN 61547, EN62031/A1, IEC 62717
LED Driver	CE 61347-1, EN 61347-2-13, EN 55015/GB 17743, EN 61000-3-2/GB 17625.1, EN 61000-3-3, EN 61000-4-2, -3, -4, -5, -6, -8, -11, EN 61547
